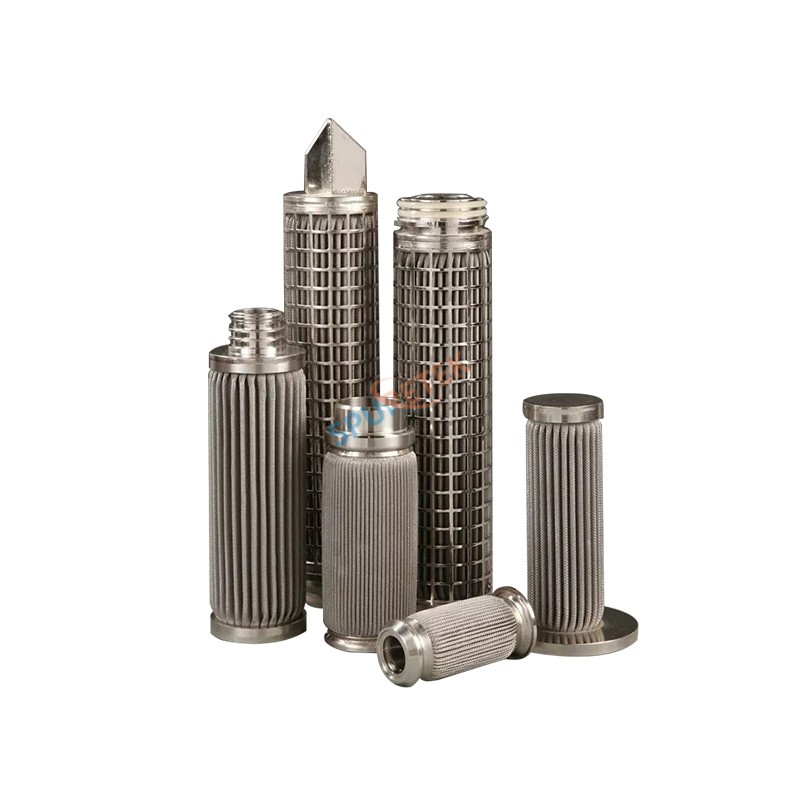

Features and Benefits
- Adopt 304 or 316L stainless steel mesh or stainless steel sintered felt as the main filter material
- Each sealing surface shall be welded by argon arc welding or laser welding process
- The filter layer adopts multi-folding folding process, the whole stainless steel folding filter element constitutes a complete filter element structure, no leakage, no media shedding phenomenon.
Technical Specifications
| Size | Length | 5”, 10”, 20”, 30”, 40” | |
| Materials | Filter Media | 304 / 316L stainless steel mesh or stainless steel sintering felt | |
| Removal Rating | 1um, 2um, 5um, 10um, 20um, 50um, 100um | ||
| End caps type | 222Fin/ Flat, 226Fin/ Flat, DOE | ||
| O-ring seal | EPDM/ Silicone / Viton | ||
| Operation conditions | Max. Temperature | ≤300℃ | |
| Applications | •Water treatment
•Oil and gas •Petrochemical oil •Pharmaceutical •Food and beverage •Other high temperature and high pressure liquid filtration •Other high temperature air filtration |
||
