When selecting pleated micro filter cartridges for precision fluid treatment, many engineers only focus on micron rating and flow rate, ignoring how each structural component directly impacts dirt-holding capacity, chemical compatibility and overall service life. Every layer and fitting of a pleated filter cartridge is engineered for targeted industrial, food & beverage, pharmaceutical and water purification applications. This technical guide fully disassembles all external and internal components of standard pleated filter cartridges, covering all mainstream fitting styles, sealing materials and filter media options to support your accurate product specification and system design.
Pleated micro filter cartridges are the core precision filtration consumables for small-bore security filter housings, widely applied in RO pretreatment, pharmaceutical sterile filtration, beverage purification and fine chemical liquid polishing. Its integrated multi-layer structure is split into external fitting assemblies and internal depth filtration layers, with every part offering customizable material selections for diverse fluid conditions.

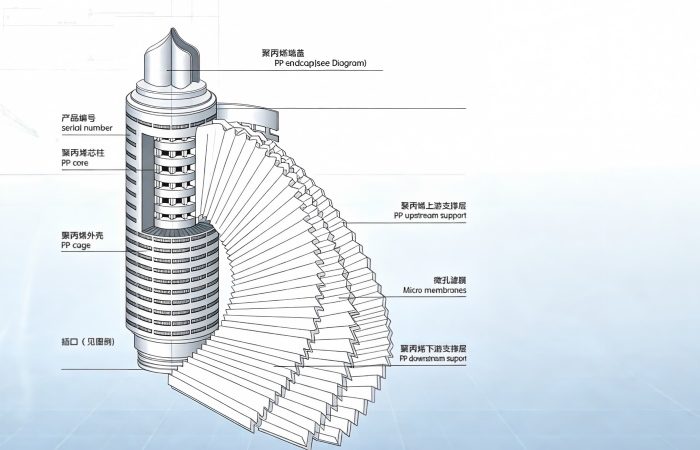

Part 1: External Components (Top to Bottom Layout)
All exterior fittings define the cartridge’s installation compatibility, sealing performance and housing matching capacity:
- Fin Top (V-shape / Triangle Fin Design)
- PP End Cap
- Outer PP Cage
- Bottom Inlet Adapter
- O-Ring Seal
Part 2: Internal Filtration Layers (Outer to Inner Flow Path)
The multi-layer internal stack delivers full-depth staged particle interception, the core source of the cartridge’s long service cycle:
- PP Upstream Support Layer
- Microporous Filter Membrane (Core Filtration Medium)
- PP Downstream Support Layer
- Central Core Support Rod
Conclusion
Every external fitting and internal filtration layer of pleated micro filter cartridges serves a critical functional purpose. Customization of fin type, adapter style, O-ring elastomer and filter membrane material enables tailored filtration solutions for municipal water, food processing, biopharmaceutical and chemical manufacturing. Matching component materials to your feed fluid’s temperature, pH and chemical composition is the key to maximizing cartridge dirt-holding capacity, eliminating bypass leakage and extending filter service life.
